Powerful SDS Plus (TE-C) rotary hammer for heavy-duty concrete drilling and corrective chiselling, with Active Vibration Reduction (AVR)

  • Weight according to EPTA-Procedure 01/2003 without battery: 4.2 kg
  • Optimum hammer drilling range: 10 - 20 mm
  • Single impact energy: 3.6 J

Customers also searched for rotary hammer drill roto hammer sds plus hammer drill or corded rotary hammer.

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
4.2 kg
Optimum hammer drilling range
10 - 20 mm
Single impact energy
3.6 J
Working mode
Hammer drilling, Drilling, Chisel setting, Chiselling
Hammer drilling diameter range
5 - 28 mm
Hammer drilling RPM
1100 rpm
Full hammering frequency
4500 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiselling, Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
9.7 m/s² 1
Triaxial vibration for chiselling in concrete
8.8 m/s² 2
A-weighted emission sound pressure level
95 dB (A) 3
Dimensions (LxWxH)
371 x 113 x 225 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Quick-change chucks – changing bits is fast and tool-free
  • Extra-long lifetime thanks to a highly robust chuck, motor components and casing
  • Active Vibration Reduction (AVR) makes working with the tool less tiring and increases productivity
  • Perfect balance, low weight and compact design for superior working comfort

Applications

  • Drilling anchor, rebar and through holes in concrete and masonry – possible diameter range 4-28 mm, recommended diameter range 10-20 mm
  • Chiselling in brick and block, corrective chiselling and surface finishing on concrete
  • Drilling in wood and metal using the optional quick-release chuck and drill bits with smooth shank up to 13 mm diameter
  • Driving anchor screws and concrete screw anchors

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • Smooth on-site pick-up and delivery thanks to our strong partnerships with trusted carriers
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Individual labels and online visibility provide tool fleet transparency
More information about Fleet Management

Product Videos

Arrange a Demo & Support

Would you like an interactive demonstration of this product? Meet one of our product experts for a free and hands-on presentation.

Use this instant messaging tool to get easy and quick access to our Customer Service team.</br>This service is available during business hours Mon - Thur 09:30 - 16:00 & Fri 09:00 - 16.00

Let us call you back and connect you with one of our competent Hilti advisors. You will be contacted within a couple of minutes during business hours 8:00 AM – 5:00 PM.

Speed-up your everyday applications

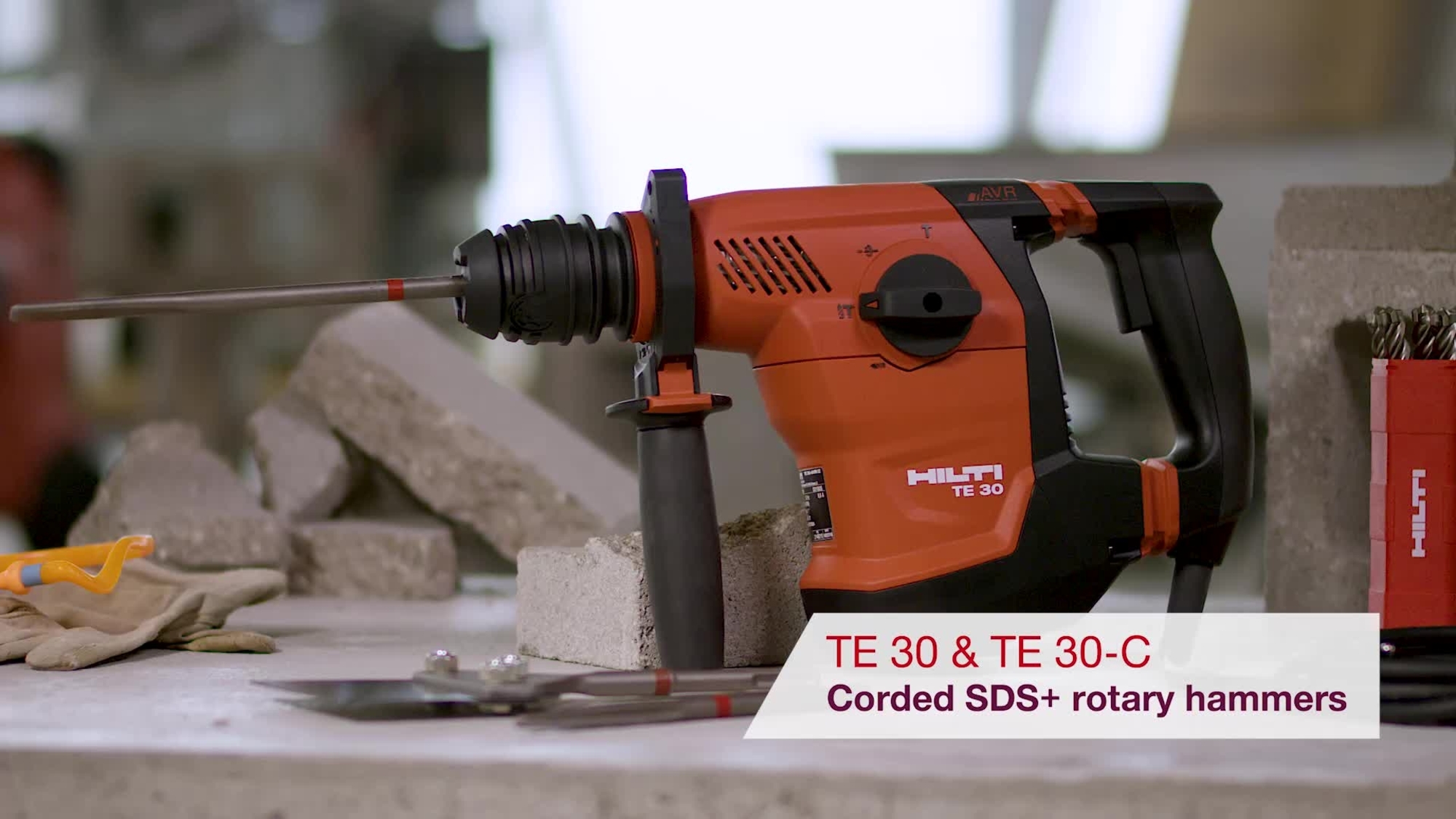

Without compromising on safety with the new TE 30-AVR Combihammer

Whatever your trade, it's always good to have a reliable all-rounder in the back of the van that can take-on your everyday drilling and chiselling applications.

That's where the new TE 30-AVR Combihammer comes into its own!

The new TE 30-AVR Combihammer has the lowest vibration level in the market place and can drill up to 30% faster than the competition. All this gives you a fast, safe and reliable workhorse to get the job done.
