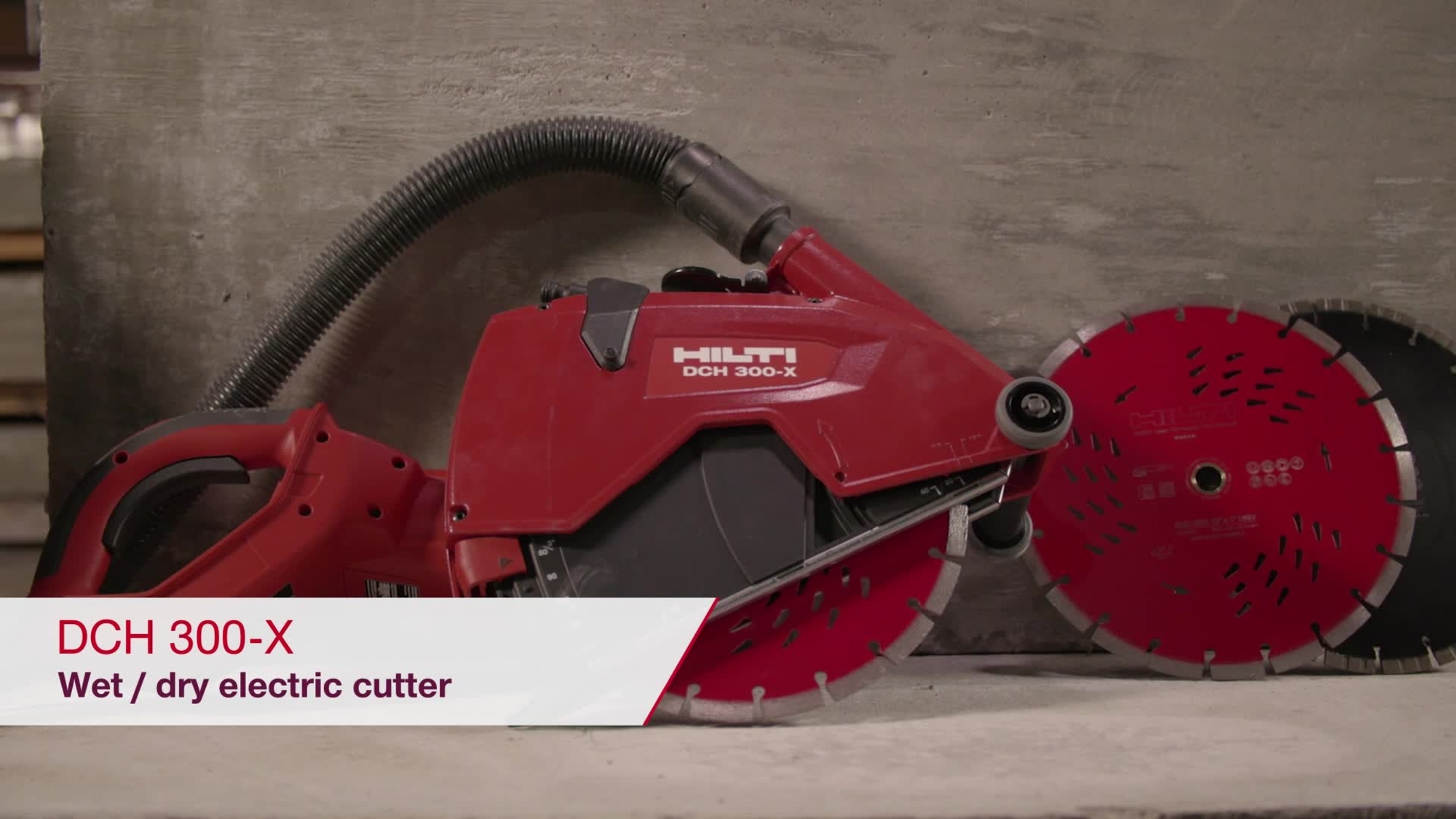

DCH 300-X Electric cutter
Diamond cutter DCH 300-X 110V #2149599
Wet and dry electric hand-held diamond cutter – cutting depth up to 120 mm with 305 mm blades
- Disc diameter: 305 mm
- Cutting depth: 120 mm
- No load RPM: gear 1: 4900 rpm
Customers also searched for concrete cutter or electric saw.
Technical Data
Disc diameter
305 mm
Cutting depth
120 mm
No load RPM
gear 1: 4900 rpm
Triaxial vibration value for cutting concrete slab (ah)
5.1 m/s² 1
Weight
9.4 kg
Arbor size
22.2 mm
A-weighted emission sound pressure level
106 dB (A) 2
Dimensions (LxWxH)
677 x 239 x 270 mm
Wet or dry operation
Wet and dry
Rated input power
2300 W
- According to the applicable product standard (see Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Water kit allows wet cutting, which is 30% faster than dry cutting and virtually dust-free
- Depth gauge – allows full control of the cutting depth in 10 mm steps from 40-120 mm
- Ensures a virtually dust-free jobsite when used with a compatible vacuum cleaner
- Protection against overheating, overloading and water – prolongs the tool's lifetime and increases the operator's safety when wet cutting
- The inverted blade rotation guides the tool away from the operator's body and therefore makes cutting easier and safer
Applications
- Cutting reinforced concrete, granite kerbstones, slabs, brick and masonry blocks
- Cutting and extending openings for windows, doors and shafts
- Making preliminary cuts for controlled demolition
Related Products
Ultimate diamond blade with Equidist technology for superior cutting in different base materials
Ultimate diamond blade with Equidist technology for extreme-speed wet cutting in non- and lightly reinforced concrete, masonry and natural stone
Very powerful dust extractor for connection with power tools and jobsite clean ups (wet & dry), 60l tank
