CFS-TTS E Firestop Top Track Seal Fast, simple, and clean firestop preformed solution for top-of-wall drywall joints and deflection heads

Move cursor over image to zoom.

Click on image to zoom.

Move cursor over image to zoom.

Click on image to zoom.

Testimonial video capturing customer comments about the CFS-TTS Firestop total track seal

CFS-TTS Promo (16:9, EN)

Hilti CFS-TTS firestop top track seal

CFS-TTS E Firestop Top Track Seal Fast, simple, and clean firestop preformed solution for top-of-wall drywall joints and deflection heads Applications 1

Move cursor over image to zoom.

Click on image to zoom.

Move cursor over image to zoom.

Click on image to zoom.

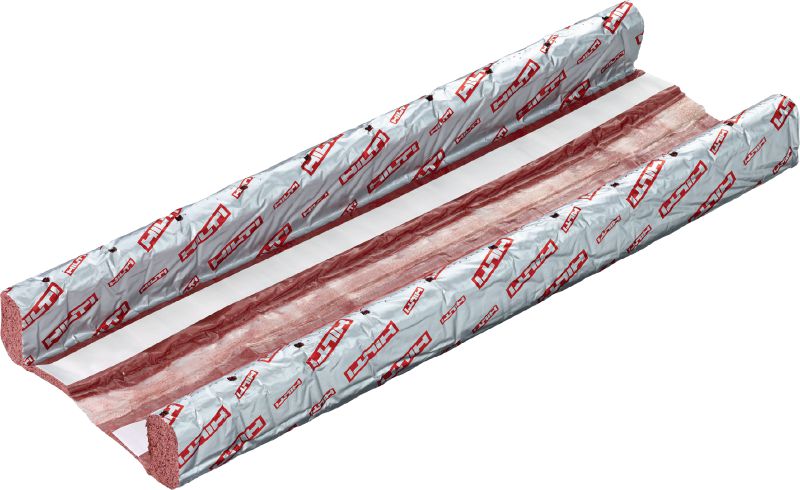

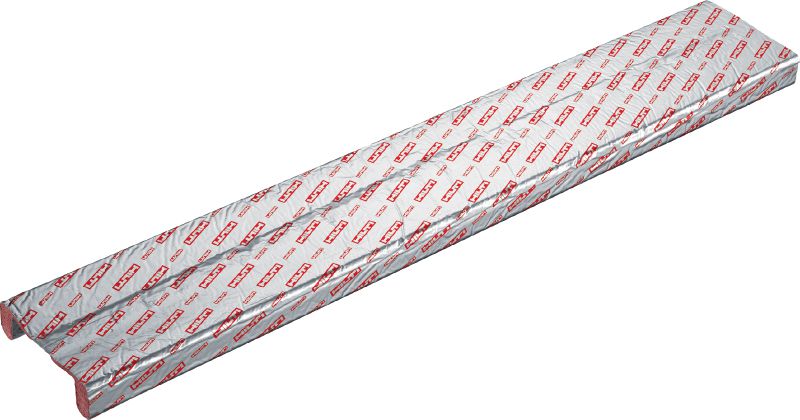

CFS-TTS E Firestop Top Track Seal

Name: CFS-TTS E Firestop Top Track Seal
Brand: Hilti
SKU: r8212116

New product Shop Learn More Ultimate

Item #r8212116

Fast, simple, and clean firestop preformed solution for top-of-wall drywall joints and deflection heads

Length: 3060 mm
Approvals: EN 1364-1
Movement: Yes

More technical data

Customers also searched for Top Head or Deflection Head

Features

HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@c12fb375, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@9dfbbb0f, unit=null, value=Fast installation – fewer working steps (one and done)}], id=CHA_ADVANTAGE_01, multiValue=false, name=Advantage 01}
HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@a5f667c0, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@e108ff26, unit=null, value=Sealing properties designed for real jobsite conditions – forms a more reliable sound and smoke barrier even on imperfect concrete}], id=CHA_ADVANTAGE_02, multiValue=false, name=Advantage 02}
HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@660889f7, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@f577cd1, unit=null, value=Makes inspection easier}], id=CHA_ADVANTAGE_03, multiValue=false, name=Advantage 03}
HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@ac1eb391, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@c5aee5f9, unit=null, value=Increased worker safety – minimises the need to work at height}], id=CHA_ADVANTAGE_04, multiValue=false, name=Advantage 04}
HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@7e376bd9, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@1927ef33, unit=null, value=Versatile solution for any plasterboard track size}], id=CHA_ADVANTAGE_05, multiValue=false, name=Advantage 05}

Applications

HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@412bdfc6, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@a8ecc294, unit=null, value=Firestop, smoke and sound seal for head-of-wall joints}], id=CHA_APPLICATION_01, multiValue=false, name=Application 01}
HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@e1815faf, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@ad920fcd, unit=null, value=CFS-TTS is designed for a perfect friction fit with all common track sizes}], id=CHA_APPLICATION_02, multiValue=false, name=Application 02}
HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@bfb163e6, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@5b5deb78, unit=null, value=CFS-TTS ES is designed for a flexible solution for partition walls and various track applications}], id=CHA_APPLICATION_03, multiValue=false, name=Application 03}
HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@afe031e1, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@1420f3df, unit=null, value=Nominal joint width of max. 25mm, compression only}], id=CHA_APPLICATION_04, multiValue=false, name=Application 04}

For approval or certificate information, please see individual items.

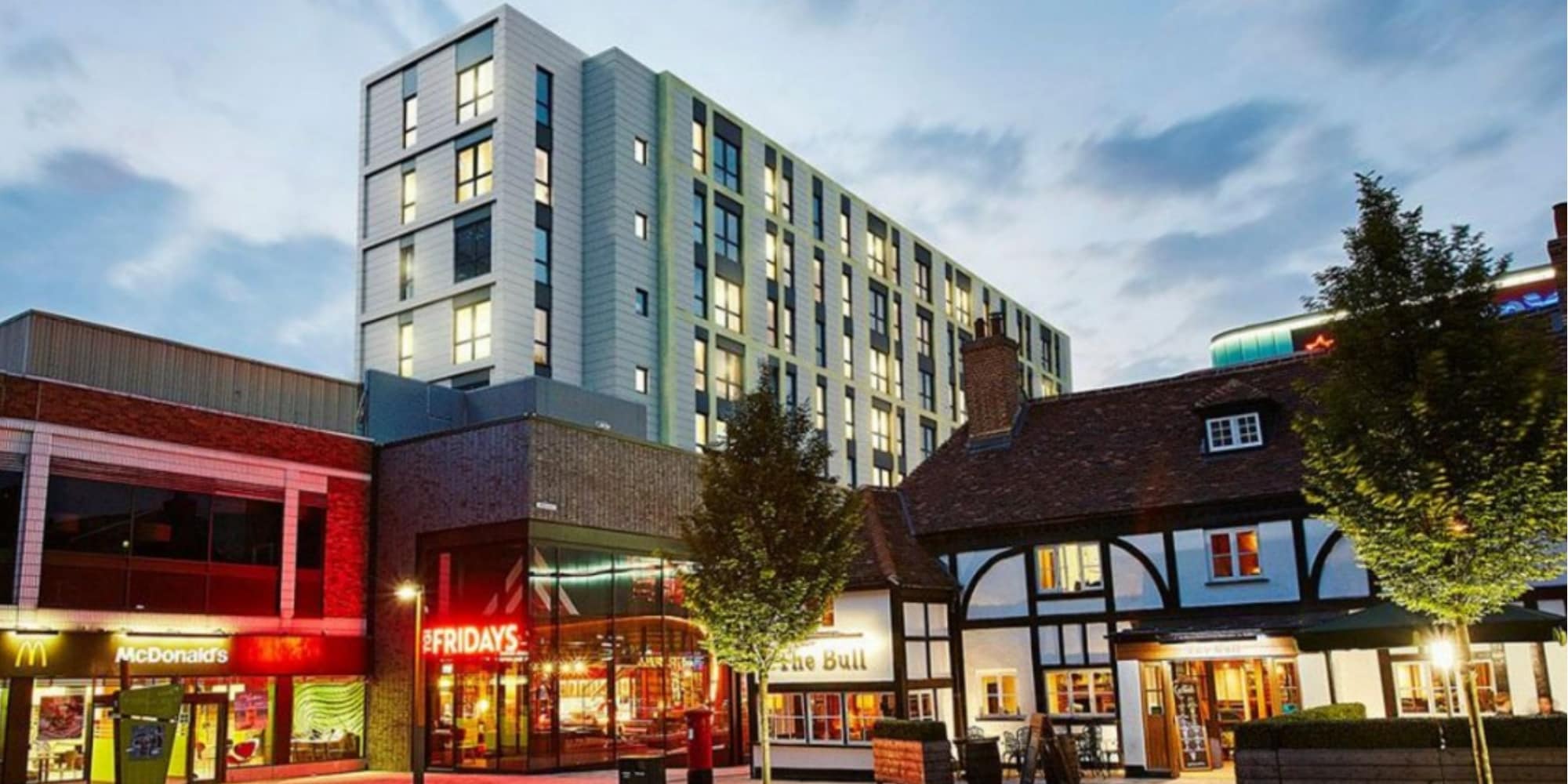

Eagle House refurb, London, UK

Hilti CFS-TTS E Firestop top track seal helped Eagle House soar in office-to-resi refurb, giving ASM Drylining complete peace of mind.

Read the full RIBA Journal case study here

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator

Breakthrough innovation in Firestopping for deflection head applications

With the new CFS-TTS Firestop top track seal

Firestopping drywall can be a laborious task - first you need to measure and cut the gypsum board which can create huge clouds of dust. Then when you've got everything prepared, fastening the deflection head is usually a two-person job which may need to be repeated 2-3 times depending on the number of layers of board required.

The new CFS-TTS Firestop top track seal for drywall applications simplifies this whole process to 3 very quick and easy steps: just apply the firestop to the drywall track, cut it to length and then fasten it in place - that's it!

This completely new firestopping method delivers a European fire rated seal (EN 1366-4) at the top of the drywall track to block smoke and fire for up to 120 minutes, giving you complete peace of mind whilst saving you lots of time in the process.

Buy Now

Firestopping for up to 120 minutes in 3 simple steps

The traditional method of firestoppoing drywall with a deflection head can be very time consuming with up to 13 individual steps to get the job done and carries a few risks such as dust, working at heights and manual heavy lifting. With the new CFS-TTS Firestop top track seal, this deflection head process is eliminiated meaning you can get the job done up to 5x faster and work in a much safer way.

1. APPLY

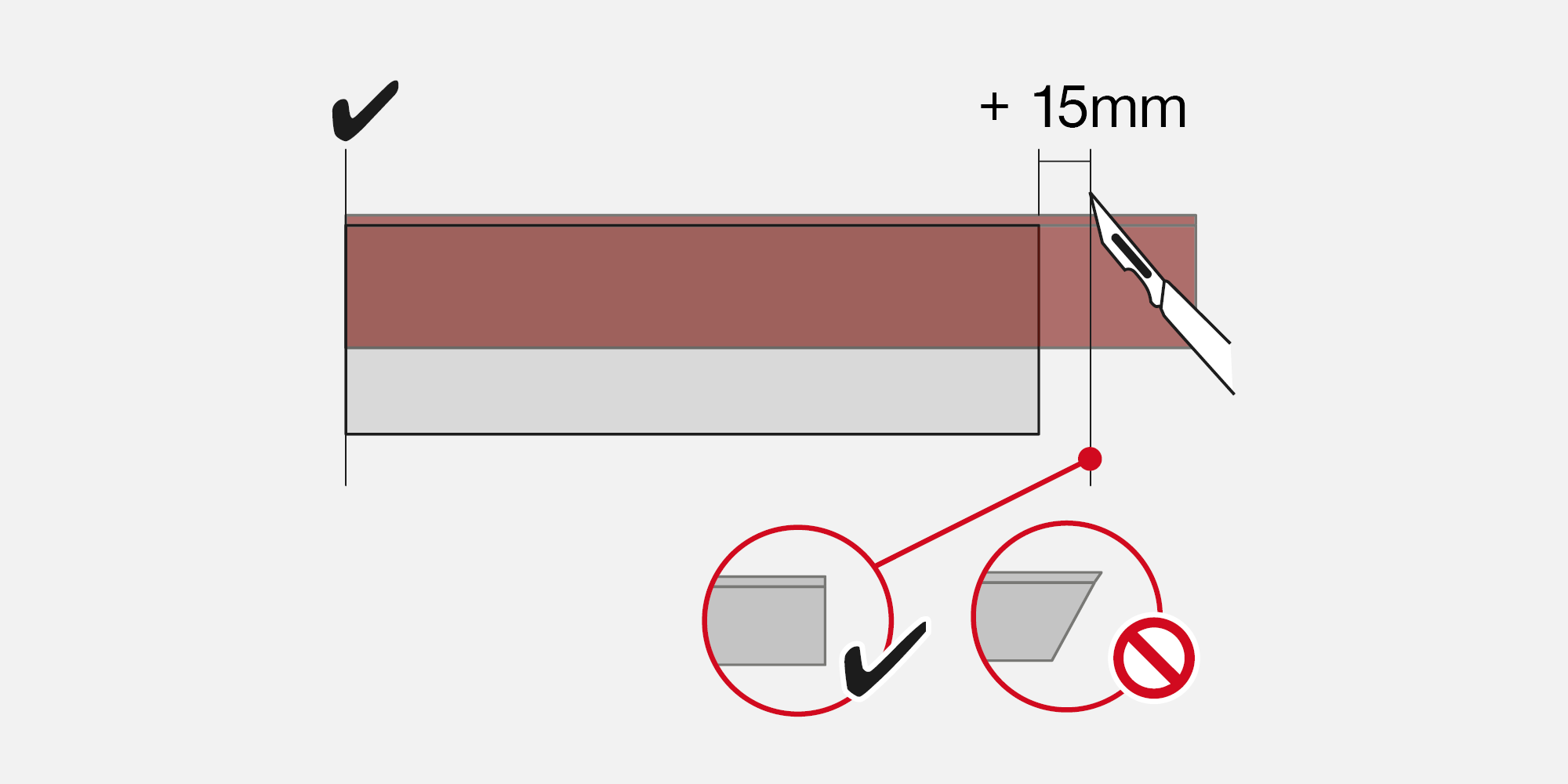

2. Cut to length

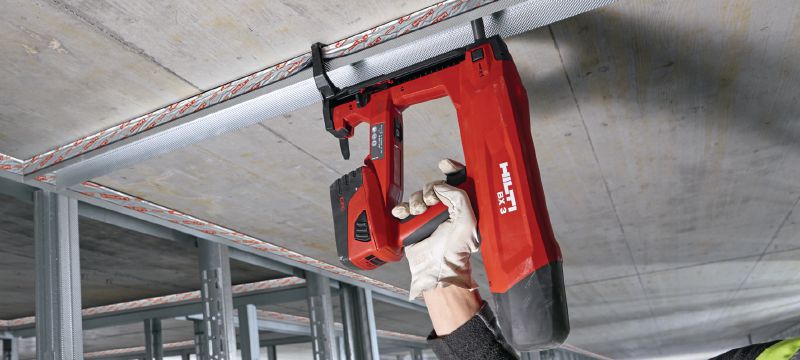

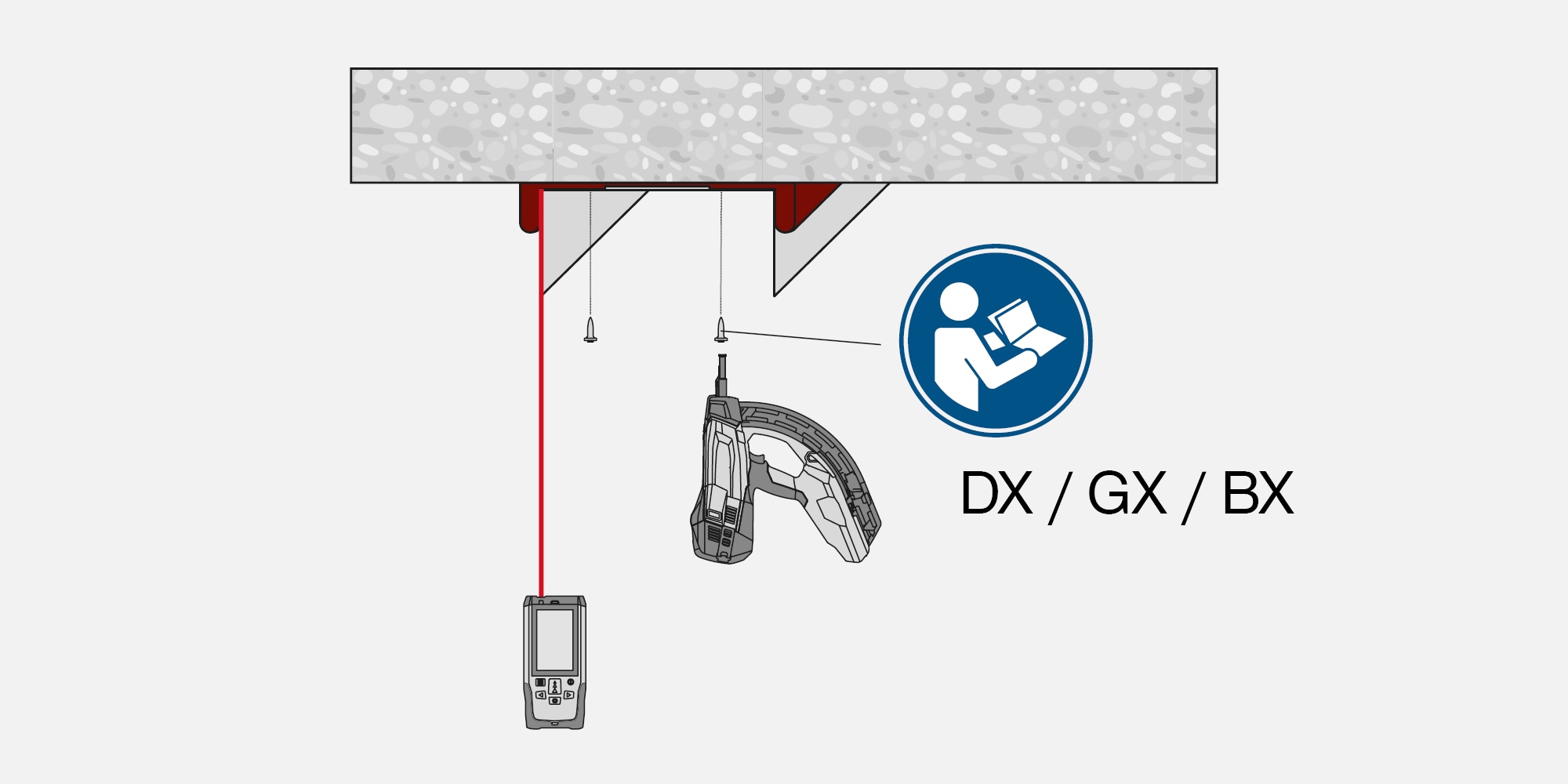

3. Fasten

Stress-free inspections with complete peace of mind

CFS-TTS Firestop top track seal for drywall applications

Once the CFS-TTS Firestop top track seal is installed, there's no back fill required which means it's really easy to see that the installation has been completed correctly - saving you the stress of the inspection and making it quick and easy for the inspector too.

With a European fire rated seal (EN 1366-4) to block smoke, heat and fire for up to 120 minutes you can finish the job with complete peace of mind.

Eagle House refurb, London, UK

Hilti CFS-TTS E Firestop top track seal helped Eagle House soar in office-to-resi refurb, giving ASM Drylining complete peace of mind.

Read the full RIBA Journal case study here

CFS-TTS E Firestop Top Track Seal

Fast, simple, and clean firestop preformed solution for top-of-wall drywall joints and deflection heads
