Nuron

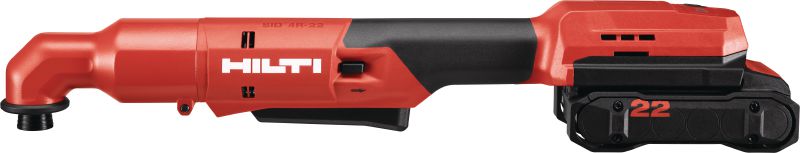

SID 4R-22 Right-angle impact driver

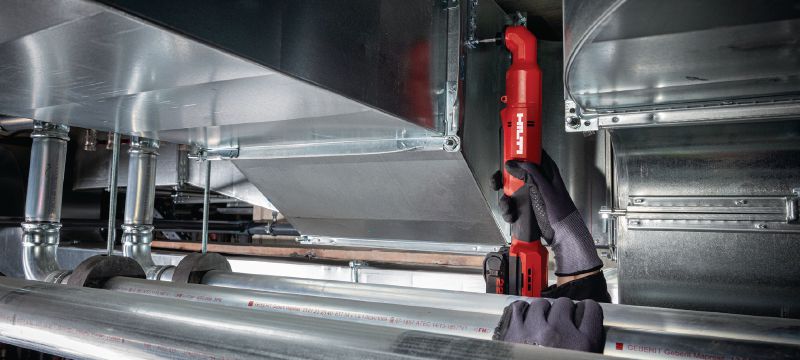

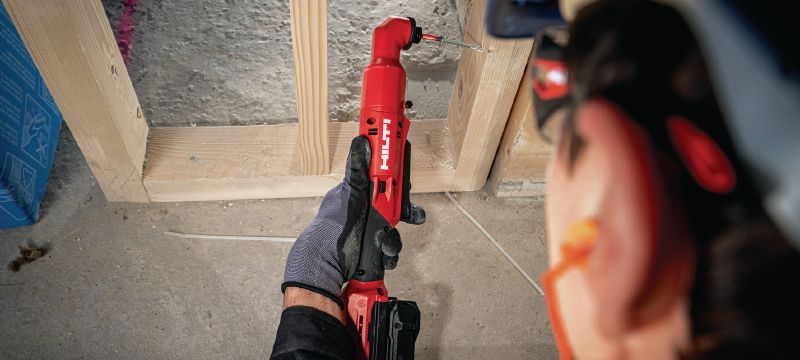

Compact, cordless right-angled impact driver for reaching tough to access applications
- Chuck type: 1/4" hexagonal click-in
- No load RPM: gear 1: 1600 rpm; gear 2: 2250 rpm
- Maximum torque: 31 Nm (1); 98 Nm (2)
Technical Data
Chuck type
1/4" hexagonal click-in
No load RPM
gear 1: 1600 rpm; gear 2: 2250 rpm
Maximum torque
31 Nm (1); 98 Nm (2) 1
Full hammering frequency
3800 impacts/minute
Number of gears
2
Dimensions (LxWxH)
438 x 69 x 78 mm
Tool body weight
1.2 kg
A-weighted emission sound pressure level
97 dB (A) 2
Tri. vibr. val. for impact tightening of fasteners at max. cap. of tool (ah)
17.4 m/s²
Rated voltage
21.6 V
- Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features

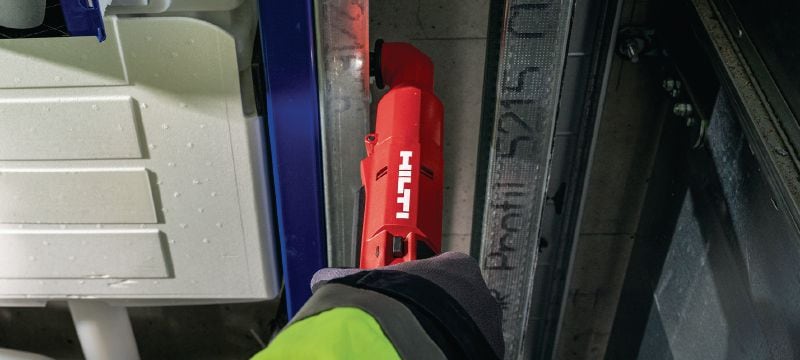

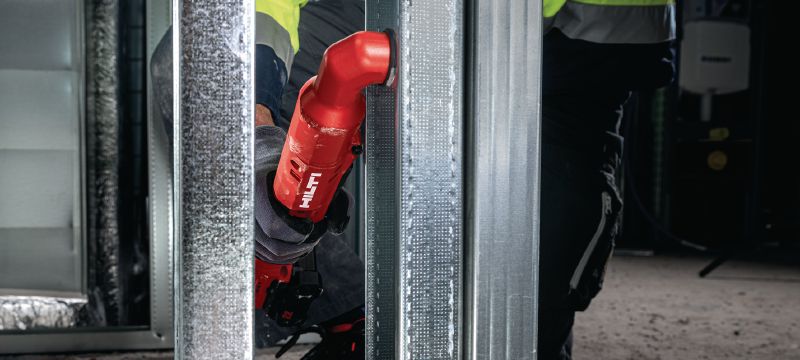

- Access to hard to reach spaces where other tools won’t fit
- Reach even further into confined spaces with the longer grip and in-line battery interface
- Quick change ¼” hex chuck allows for the easy input of bits
- Built to last thanks to the more efficient brushless motor, more powerful motor cooling and sealed electronics
- Strong LED light provides more powerful illumination of the work area
Applications
- Self-drilling screws – optimised for drilling through metal, then driving threads to completion
- Wood screws – agile cordless impact driver for attaching wood to your project
- Masonry screws – two gears so torque can be reduced for masonry screws
- Drilling in wood with spade bits such as WDB-S
For approval or certificate information, please see individual items.
