X-MW ALH L Wire hanger system
New product UltimateItem #r13332525
Wire hanger system for spiral HVAC ducting and lighting applications, installed using powder-actuated fastening tools
- Material: Carbon steel
- For use with (tools): DX 351, DX 460, DX 5, DX 6
- Base materials: Concrete (tough), Concrete (soft), Concrete (pre-cast), Concrete (normal weight over metal deck), Steel
Share
Features
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@14ffd933, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@f82236e5, unit=null, value=Shorter installation time – wire rope suspensions are a faster alternative to threaded rod}], id=CHA_ADVANTAGE_01, multiValue=false, name=Advantage 01}

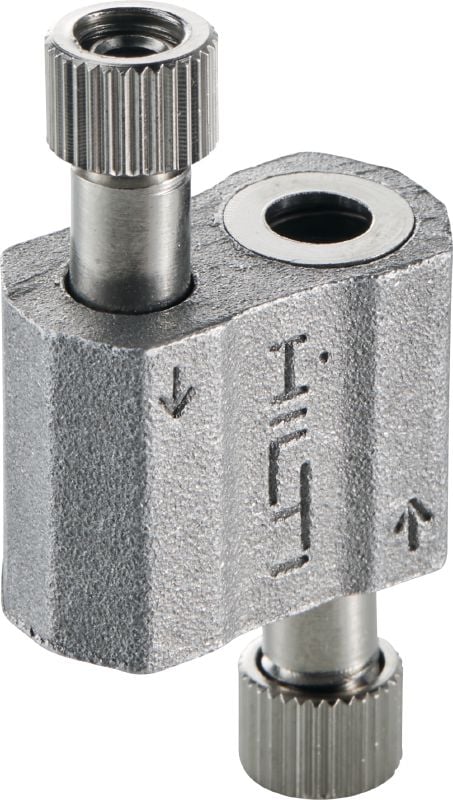

- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@8c138247, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@56b6e2d3, unit=null, value=Easier to adjust – self-closing wire lock can be adjusted tool-free, making leveling, retrofitting and long drop lengths much simpler}], id=CHA_ADVANTAGE_02, multiValue=false, name=Advantage 02}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@9f3b3ab8, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@ba400484, unit=null, value=Aesthetics – wire rope suspension is a discreet installation method for exposed building services and open soffits}], id=CHA_ADVANTAGE_03, multiValue=false, name=Advantage 03}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@1c74fcdf, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@14dc683f, unit=null, value=Can be fastened while standing on the floor using the DX pole tool – safer method of installation avoiding lifts and ladders}], id=CHA_ADVANTAGE_04, multiValue=false, name=Advantage 04}

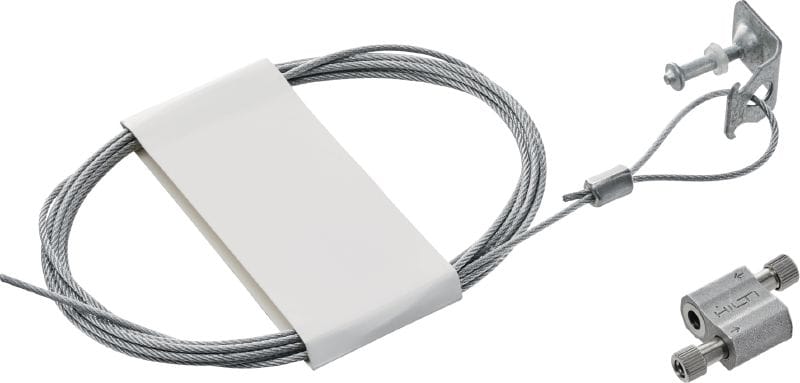

- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@41be465a, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@182a526, unit=null, value=All you need in one sales box (lock, pre-cut wires and nail clip)}], id=CHA_ADVANTAGE_05, multiValue=false, name=Advantage 05}
Applications

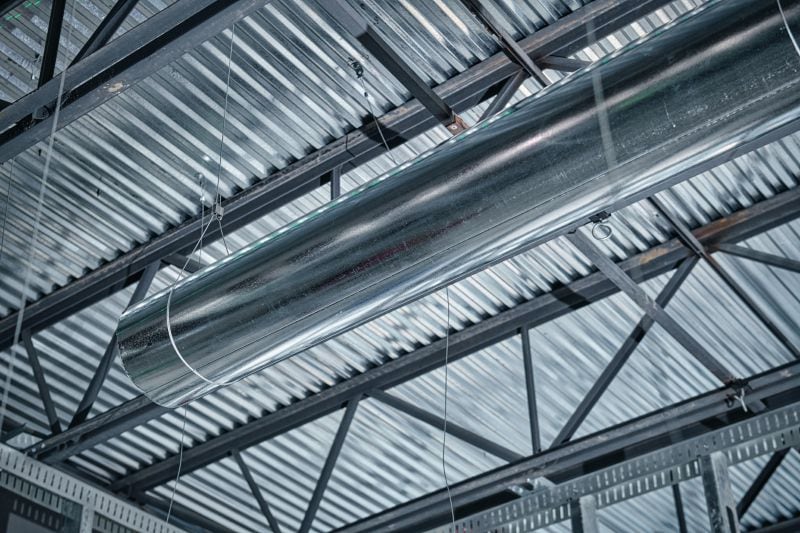

- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@55980915, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@33db4c79, unit=null, value=Suspending spiral HVAC duct from concrete}], id=CHA_APPLICATION_01, multiValue=false, name=Application 01}

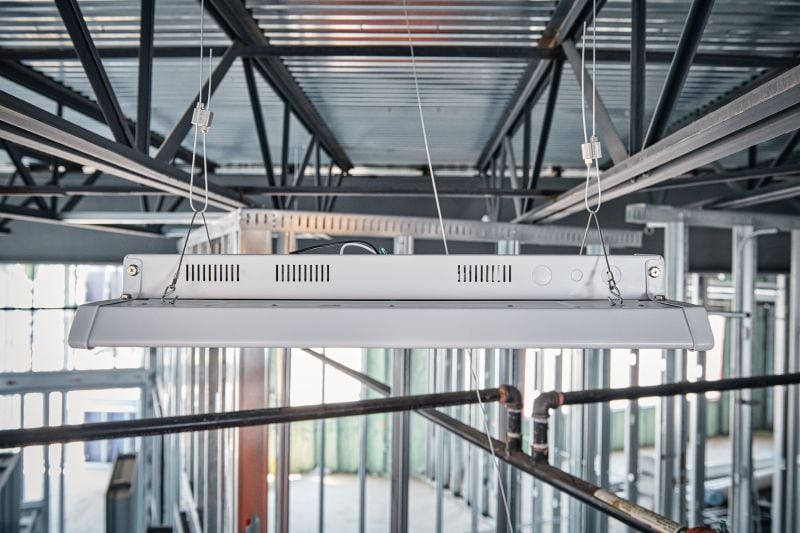

- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@6ead6d21, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@66e8e06f, unit=null, value=Suspending electrical lighting from the ceiling}], id=CHA_APPLICATION_02, multiValue=false, name=Application 02}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@8bd0ba6a, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@89725c48, unit=null, value=Suspending security attachments (secondary attachment point to work if first attachment point fails)}], id=CHA_APPLICATION_03, multiValue=false, name=Application 03}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@6c3ea586, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@4fb432e, unit=null, value=Up to 100 lbs allowable load values}], id=CHA_APPLICATION_04, multiValue=false, name=Application 04}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@4edf89c9, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@b851a4d, unit=null, value=Suitable for use in dry, indoor environments only}], id=CHA_APPLICATION_05, multiValue=false, name=Application 05}
