PROFIS Detection Office
New productItem #r4335368
Software for analyzing and visualizing data from Ferroscan concrete scanners and X-Scan detection systems
- Supported operating system: Windows 7, Windows 8, Windows 10, Windows 11
- Security and authorizations: Hilti-signed software
- Minimum disc space required: 250 MB
Share
Customers also searched for software
Highlights
- Analyze and model your concrete scans with one software program

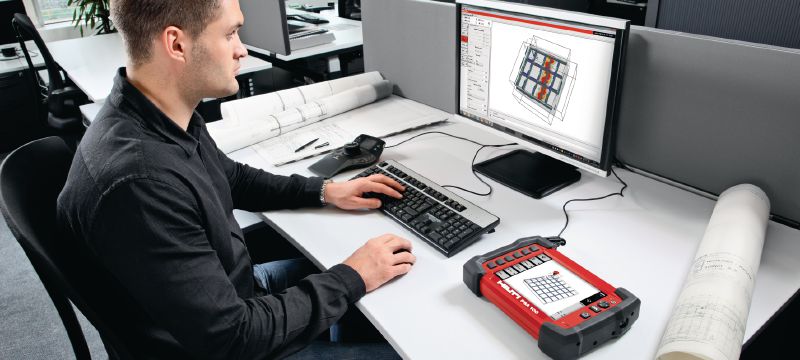

- Full data processing from raw data to 3D models, including 2D and 3D plan views or cross-sectional images. With PROFIS Detection Office, you can easily create an accurate 3D model of hidden objects within a concrete structure. The software is BIM-ready in order to facilitate more efficient, accurate, cost-effective and reliable project planning.
- Simplify structural analysis using visualization tools
- PROFIS Detection Office supports three-sensor data overlay – radar, EM and Ferroscan – for easy target object classification and depth calibration
- Compatible with popular BIM, CAD and PROFIS Anchor software
- Supports data export in various formats for use with popular design applications such as AutoCAD®, Trimble SketchUp® and many more. Supported export formats include: DXF, COLLADA, PLY, X3D, BMP, JPG. You can import X3D scan files in PROFIS Anchors to support collision-free anchor and baseplate design.
- Help avoid damage while drilling or sawing – even before work begins on site
- Scan positions can be labelled with building coordinates and exported for accurate scan placement in design files or repositioned later on-site with layout tools.
- Get all the facts for more accurate bidding and scheduling
- Having the best possible structural information in advance allows more accurate communication and tendering. Easy-to-understand structural reports help you avoid unexpected remedial works and damage during drilling, coring or sawing.
- Easily generate structural assessment reports
- Assessment reports and documentation to support design, refurbishment, or extension of existing structures can be exported in Microsoft Word®, PDF or HTML format.
Technical Data
Documents & Videos
Application videos
-
PROFIS Detection
Instructions for use videos
-
HOW TO scan for structural analysis with PS 300 Ferroscan (EN)
